KDL Produce High Quality 150 Micron 100 Mesh SS304 316 Stainless Steel Square Metal Woven Sieving Screen Filter Netting

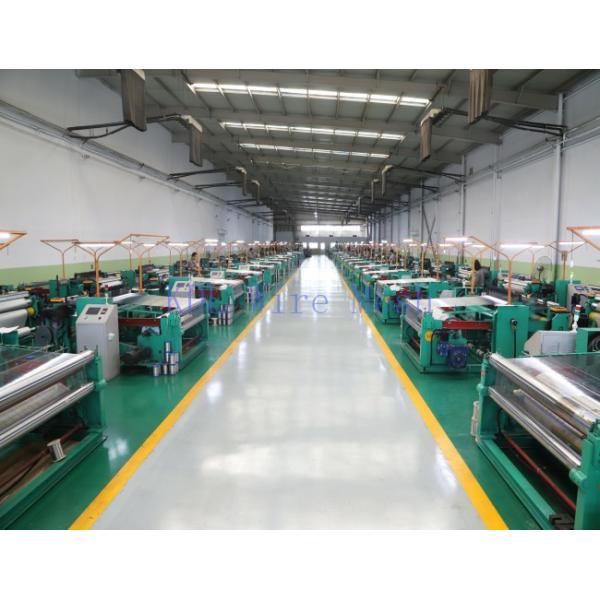

The leading products produced by Jindelon are woven nets of various specifications, with a mesh number of several thousands, suitable for various weaving methods and materials and application fields. With a variety of imported and independent research and development of production and testing equipment, it is one of the largest local wire mesh manufacturers.
The raw materials used in the company's weaving mesh are low carbon steel, stainless steel, brass, copper, phosphor copper, silver, galvanized, Monel, Inconel and other special alloys from domestic steel mills. Jindelon Company is located in Anping "the hometown of wire mesh", close to the northern steel enterprises are more concentrated area - Tianjin, so our raw material price is favorable, the supply is sufficient, the material is stable, and the next production has laid a solid foundation.
Inspection of mesh width and length:
The standard roll length of stainless steel square mesh is 30.5 meters or 30 meters, only positive tolerance +0.5m is allowed, negative tolerances are not allowed, and the width width is less than 2 meters, only positive tolerances +20mm are allowed, and negative tolerances are not allowed.
100Mesh,150 Micron is one of popular specification used in the industrial filter field.
Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, etc.
Types of weave: Plain Weave, Twill Weave or Dutch Weave
Mesh count: 100 mesh
Diameter: 0.10mm,0.11mm
Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30m in metric, customization available
Applications: Filters, sieve, chemical industry, mine industry, paper-making, etc.
Specification:
Product Tags:
|
|
304 316 Stainless Steel Square Metal Woven Sieving Screen 150 Micron 100 Mesh Images
|
